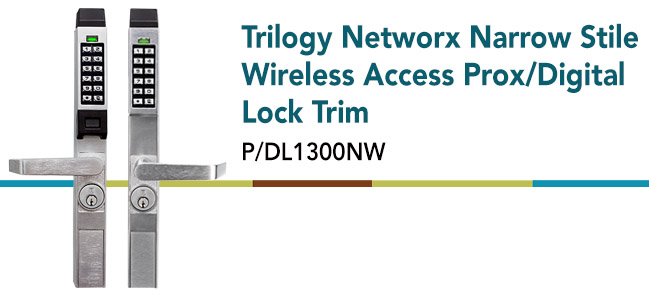

Trilogy® Networx® Narrow Stile Wireless Access Prox/Digital Lock Trim: P/DL1300NW

Get field-proven Trilogy® keyless access lock convenience anywhere there's a glass door with wireless Trilogy Narrow Stile Networx® lock trim from Alarm Lock. Weatherproof, all-metal and vandal resistant, they offer automatic lock or free passage schedules to Adams Rite® latch lock applications, remote keyfob support and emergency global lockdown in seconds. Trilogy Networx locks communicate wirelessly via gateways and have an unsurpassed battery life.

Trilogy Networx

P/DL1300NW

Trilogy Networx
  • Wireless Access Lock Trim adds Keyless Convenience and automatic Lock- or Free-Passage schedules to Adams Rite Latch Lock Applications
  • Field-Proven, familiar Trilogy® keyless access lock convenience, programming & electronics
  • PIN code and PIN/Prox Models support up to 5000 users
  • Trilogy Networx Locks communicate wirelessly via Gateways to Ethernet or 802.11B/G for a comprehensive wireless networked door access control system, eliminating door to door programming
  • Networked to save manpower - On demand in seconds or automatically on a set schedule, wirelessly change/update users, schedules, lock features or retrieve time-/date-stamped audit trails, up to 35,000 events/locks from any networked PC
  • Remote Keyfob Support for unlock, locking or Global Lockdown activation
  • Activate emergency global lockdown in seconds from the Networx PC, Networx lock or keyfob
  • Saves equipment costs - Choice of Networx Gateways support 63 locks, each and multiple Gateways can be used for 2016 Locks, max. per system
  • HID Prox ID cards, keyfobs and prox tags; plus AL-ID Cards, supported in PDL1300NW Series models featuring built in reader. (High security applications can require use of both PIN code plus Prox ID for access.)
  • Proven, Low Maintenance, Wireless Installation and Unsurpassed Battery-Life with Advanced Power-Saver circuits, for years of use in even high-traffic areas, powered by 4 off-the-shelf AA Batteries; 3 to 4 years or 100,000 cycles, typ.
  • Flexible System Monitoring, Control & Programming – Program locally using a USB Gateway or remotely across a wireless network (using free Alarm Lock DL-WINDOWS Windows- based software)
  • Wide weatherproof operating range from -31 to 151ºF (-35 to 66C)
  • Key override; Mortise Cylinder, 1 1/4", supplied
  • Compact styling 15 13/32"H x 1 5/8"D x 1 3/4"W
Napco security technologies
  • All Trilogy Lock Features
    • In an hour, add dependable wireless access control, one door at a time—easily retrofit standard knobsets
    • Support 100 to 2000 PIN codes (3-5 or 6 digits); some with built-in HID prox readers for use with access ID cards/fobs
    • Multi-level user codes & one-time service codes. Free passage, group- or total lock-out modes, too
    • All are fingertip programmable at vandalproof all-metal keypad
    • PC programmable models also feature printable audit trail, auto-lock/unlock scheduling saving guard/manpower costs
    • Long-life battery operation (cylindrical models use 5AA off-the-shelf batteries); low battery alert
    • Key override, standard core (supplied) or interchangeable core prep
    • Non-handed cylindrical models
    • Programmable relay functions
    • Durable BHMA Grade 1 Lockset
    • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
    • Curved Regal handle & Matte Black US19 Option
