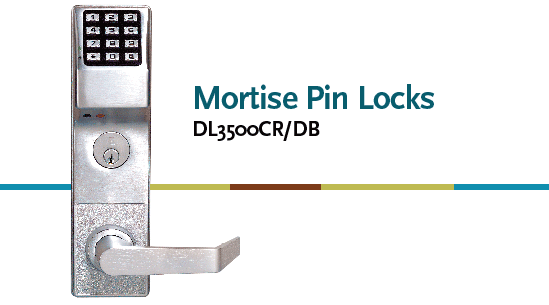

Mortise Pin

Trilogy high security mortise locks with and without prox

DL3500 Series Mortise Locks

  • 300 User codes: Master, manager, supervisor & basic users
  • Fingertip or Windows PC-programmable
  • Real time clock enables up to 500 scheduled events and holiday schedules
  • 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
  • Long-life battery pak for 80,000 cycles, typ. and low-battery alert
  • Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
  • 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
  • 40,000 event audit trail log
  • 500 scheduled events, e.g., lock or unlock
  • PC programming/reporting
  • Quick passage mode (without being in program mode)
  • Program data transferred to lock via AL-PCI2 or AL-DTMIII
  • 5AA battery-pak operated; 75,000 cycles, typ.
  • 5 Architectural finishes
  • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
